cardiffo.com Solid axle alignment requires precise adjustment of caster, camber, and toe to maintain stability and tire wear, as both wheels move together on a single beam. Independent suspension alignment allows each wheel to move independently, offering improved handling and ride comfort but demands more complex alignment procedures to ensure optimal performance. Choosing between the two depends on vehicle type, driving conditions, and maintenance preferences.
Table of Comparison
| Aspect | Solid Axle Alignment | Independent Suspension Alignment |
|---|---|---|
| Definition | Single rigid axle connects both wheels, moving as one unit | Each wheel moves independently with separate suspension components |
| Alignment Complexity | Simple setup with fewer adjustable parameters | More complex due to multiple adjustable angles and components |
| Toe Adjustment | Limited, often fixed due to axle rigidity | Fully adjustable on each wheel for precise control |
| Camber Adjustment | Minimal or none, camber changes only if axle shifts | Adjustable independently on each wheel for better handling |
| Ride Quality Impact | Less refined; bumps affect both wheels simultaneously | Smoother ride due to independent wheel movement |
| Wear and Tear | Higher tire wear risk from uneven alignment | Better tire wear distribution with precise alignment |
| Maintenance Frequency | Less frequent alignment needed | Requires regular alignment checks to maintain performance |
Overview of Solid Axle and Independent Suspension Alignments
Solid axle alignment involves adjusting components that share a rigid beam connecting both wheels, requiring precise coordination of toe, camber, and caster angles to maintain vehicle stability and tire wear. Independent suspension alignment adjusts each wheel separately, allowing for individual camber and toe settings to improve handling and ride comfort across uneven surfaces. Understanding the distinct alignment procedures ensures optimal performance tailored to the specific suspension type.
Key Differences in Alignment Procedures
Solid axle alignment requires precise adjustment of toe and camber angles as both wheels move in unison, ensuring the axle remains straight and minimizing tire wear. Independent suspension alignment involves individual wheel adjustments, including toe, camber, and caster angles, allowing for optimal handling and ride comfort with greater flexibility in suspension movement. The key difference lies in the fixed geometry of solid axles versus the complex, multi-link adjustments necessary for independent suspensions.
Pros and Cons of Solid Axle Alignment
Solid axle alignment offers consistent wheel positioning and is highly durable, making it ideal for heavy-duty and off-road vehicles. However, it has limited adjustability and can result in a harsher ride with less precise handling compared to independent suspension systems. The simplicity of solid axle alignment reduces maintenance complexity but sacrifices ride comfort and adaptability on uneven surfaces.
Advantages and Challenges of Independent Suspension Alignment
Independent suspension alignment offers enhanced wheel control and better handling performance by allowing each wheel to move independently, which improves ride comfort and road grip. However, it presents challenges due to its increased complexity, requiring precise adjustments of camber, caster, and toe angles to maintain optimal alignment and prevent uneven tire wear. Advanced diagnostic tools and skilled technicians are essential to effectively manage the intricate suspension geometry and achieve reliable alignment results.
Impact on Vehicle Handling and Performance
Solid axle alignment affects vehicle handling by maintaining consistent wheel positioning, which enhances durability and load-bearing capacity but can limit precise handling adjustments. Independent suspension alignment allows each wheel to move independently, improving traction, ride comfort, and responsiveness on uneven terrain. This results in superior handling performance, especially during cornering and high-speed maneuvers, making it ideal for passenger vehicles and off-road conditions.
Alignment Tools and Techniques for Each System
Solid axle alignment relies on precise measurement tools like straight edges, dial indicators, and camber gauges to ensure the axle is square and parallel to the vehicle frame, emphasizing the adjustment of toe and camber angles through traditional mechanical methods. Independent suspension alignment requires advanced digital wheel alignment systems and computerized geometry machines to accurately measure and adjust individual wheel angles, including caster, camber, toe, and thrust angle, allowing for fine-tuned adjustments that account for the suspension's dynamic movement. Techniques for solid axles prioritize rigid control of axle positioning, while independent systems utilize sensor-driven feedback and adjustable control arms for enhanced precision and variability in alignment settings.
Common Alignment Issues by Suspension Type
Solid axle alignment often faces challenges such as toe misalignment and camber inconsistency due to the rigid connection between wheels, leading to uneven tire wear and handling instability. Independent suspension alignment troubles typically include caster angle drift and irregular toe settings, resulting from individual wheel movement and affected by worn control arm bushings or ball joints. Proper suspension-specific alignment procedures are crucial to correct these issues and maintain vehicle stability and tire longevity.
Cost Factors: Solid Axle vs Independent Suspension Alignment
Solid axle alignment typically incurs lower costs due to its simpler design and fewer adjustable components, reducing labor time and specialized equipment needs. Independent suspension alignment demands higher expenses because of its complex geometry and multiple adjustable points, necessitating precision tools and longer service durations. Repair and maintenance costs also tend to be higher for independent suspensions given the increased number of parts and sensitivity to alignment changes.
Maintenance Requirements and Longevity
Solid axle alignment typically demands less frequent adjustments due to its robust, durable design, resulting in lower maintenance requirements over time. Independent suspension alignment requires more precise and periodic calibration to maintain optimal performance and prolong component lifespan. Proper maintenance of independent suspension systems enhances ride quality and extends longevity, while solid axles benefit from simplicity and fewer alignment variations.
Choosing the Right Alignment for Your Vehicle Type
Choosing the right alignment for your vehicle type is essential to maintain optimal handling and tire longevity. Solid axle alignment requires precise adjustments to ensure both wheels remain parallel, common in trucks and off-road vehicles designed for durability. Independent suspension alignment offers greater flexibility and precision by allowing each wheel to be aligned individually, ideal for passenger cars and performance vehicles seeking enhanced ride comfort and handling.

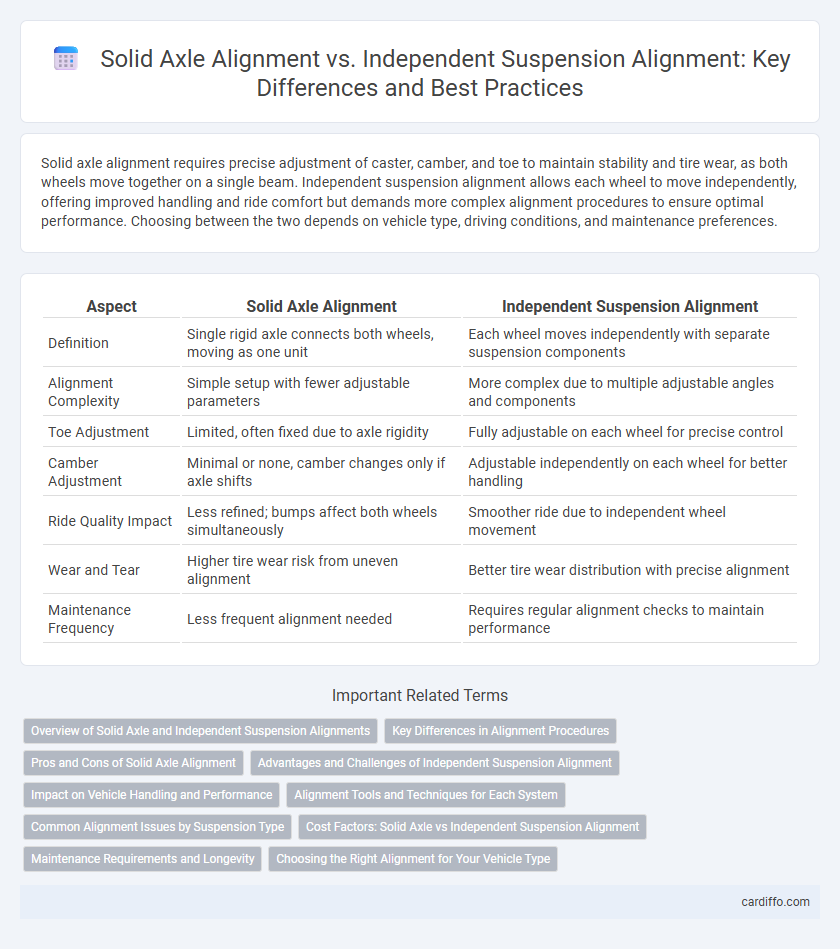

Solid Axle Alignment vs Independent Suspension Alignment Infographic
