cardiffo.com Battery pets powered by parallel configuration offer increased capacity and longer run times by combining multiple cells with the same voltage, ensuring consistent power supply even if one cell fails. Series configuration, on the other hand, is designed to increase voltage by connecting cells end-to-end, which can enhance device performance but may reduce overall battery life if not properly managed. Choosing the right setup depends on balancing voltage needs, capacity requirements, and safety considerations for the battery pet.
Table of Comparison
| Aspect | Parallel Configuration | Series Configuration |
|---|---|---|
| Voltage | Remains the same as a single battery (e.g., 12V) | Sum of all batteries' voltages (e.g., 12V + 12V = 24V) |
| Capacity (Ah) | Adds up total capacity (e.g., 50Ah + 50Ah = 100Ah) | Remains the same as a single battery (e.g., 50Ah) |
| Current Output | Increased total current capability | Current limited to single battery rating |
| Application | Extended runtime at same voltage | Higher voltage requirements |
| Risk | Uneven charge/discharge can damage batteries | Failure in one cell affects entire series |
| Complexity | Requires careful balancing and matching | Simpler wiring but critical for battery matching |
Understanding Parallel and Series Battery Configurations
Parallel battery configurations increase total capacity by connecting cells with positive terminals linked together, maintaining the same voltage while extending runtime. Series configurations connect batteries end-to-end, adding their voltages together, which boosts overall system voltage but keeps capacity constant. Understanding these differences is essential for optimizing battery performance in applications like electric vehicles and renewable energy storage.
Basic Principles of Battery Connections
In battery connections, parallel configuration involves linking all positive terminals together and all negative terminals together, increasing the total capacity (ampere-hour) while maintaining the same voltage as a single cell. Series configuration connects the positive terminal of one battery to the negative terminal of the next, resulting in an increased total voltage equal to the sum of all individual cell voltages, while the capacity remains the same as a single battery. Understanding these basic principles is crucial for designing battery systems tailored to specific voltage and capacity requirements.
Voltage and Capacity Differences Explained
In a parallel battery configuration, voltage remains the same as a single cell while capacity (ampere-hours) increases proportionally with the number of cells connected, enhancing runtime without raising voltage. In contrast, a series configuration adds the voltages of each cell together, increasing overall voltage output while the capacity remains equal to that of a single cell, which is ideal for applications requiring higher voltage. Understanding these differences helps optimize battery design for specific voltage and capacity requirements in devices such as electric vehicles, solar energy storage, and portable electronics.
Advantages of Parallel Battery Configuration
Parallel battery configuration offers increased total capacity and longer runtime by combining the ampere-hours (Ah) of each battery while maintaining the system voltage. This setup enhances reliability since if one battery fails, the others continue to supply power without interruption. It also allows for easier expansion of battery banks by simply adding more batteries in parallel to boost overall energy storage.
Benefits of Series Battery Configuration
Series battery configuration increases the total voltage output by connecting cells end-to-end, making it ideal for high-voltage applications such as electric vehicles and power tools. This setup enhances energy efficiency and power delivery while maintaining the same ampere-hour capacity as a single cell. It also simplifies battery management by requiring fewer parallel connections, reducing complexity and potential failure points.
Application Scenarios for Parallel vs Series Setup
Parallel battery configurations are ideal for applications requiring increased current capacity and longer battery life, such as in electric vehicles and renewable energy storage systems, where maintaining voltage while boosting amp-hour capacity is critical. Series configurations suit devices needing higher voltage outputs, like laptops and power tools, enabling the combined voltage of multiple cells to meet specific power requirements without altering the amp-hour rating. Choosing between parallel and series setups depends on the device's voltage and current demands, balancing energy density, safety, and operational efficiency.
Impact on Battery Life and Performance
Parallel configuration enhances battery life by increasing capacity (ampere-hours), allowing longer usage times without changing voltage, improving performance in low-drain devices. Series configuration raises voltage by adding individual cell voltages, boosting power output and enabling high-drain applications but may reduce overall battery life due to increased strain. Proper selection between series and parallel configurations depends on device voltage requirements and desired battery longevity for optimal performance.
Safety Considerations for Each Configuration
Parallel battery configurations offer enhanced safety by maintaining lower overall voltage, reducing the risk of electric shock and facilitating stable current flow, but require careful monitoring to prevent imbalances that can cause overheating. Series configurations increase voltage and energy capacity, posing higher risks of short circuits and thermal runaway if protective measures like fuses and battery management systems (BMS) are not implemented. Proper cell matching and incorporating safety devices are critical in both configurations to minimize hazards and ensure reliable battery performance.
Choosing the Right Configuration for Your Car
Selecting the correct battery configuration for your car depends on the desired voltage and capacity; parallel configuration increases capacity while maintaining the voltage, making it ideal for longer-lasting power supply. Series configuration raises the voltage by combining battery voltages, suitable for vehicles requiring higher voltage for components like starter motors. Understanding your car's electrical system requirements ensures optimal performance and battery longevity with the appropriate series or parallel setup.
Future Trends in Battery Configuration for Vehicles
Future trends in battery configuration for vehicles emphasize advanced parallel architectures to enhance energy density and thermal management, leveraging modular designs for scalability. Series configurations continue evolving with improved cell balancing technologies to maximize voltage output and efficiency in electric powertrains. Integration of smart battery management systems (BMS) with AI algorithms is pivotal for optimizing performance, safety, and lifespan in both parallel and series setups.

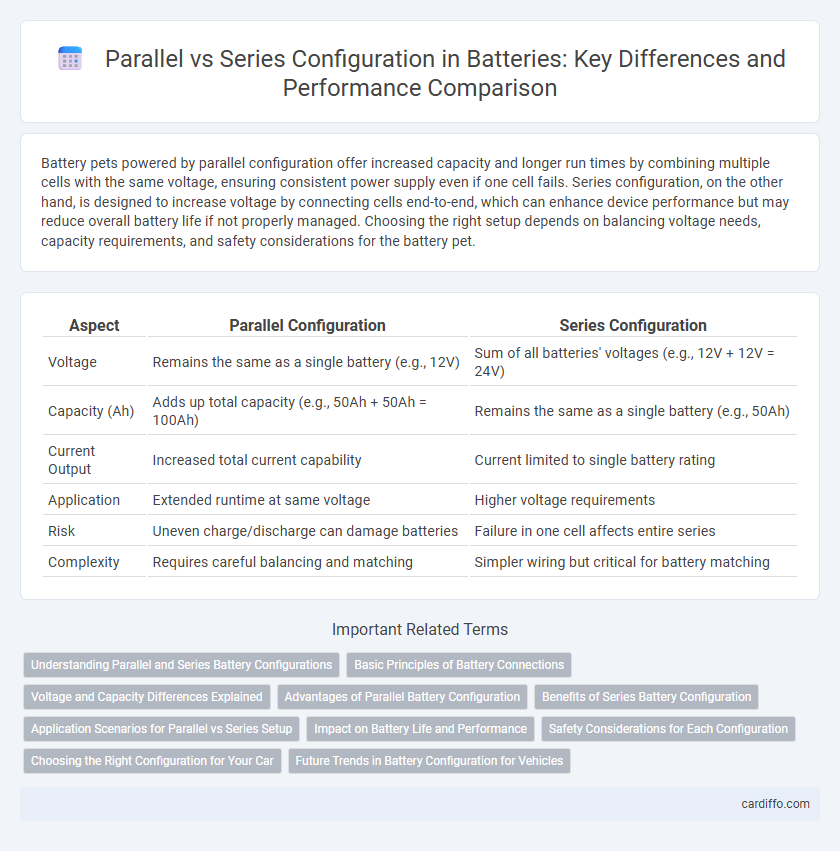

Parallel Configuration vs Series Configuration Infographic
