cardiffo.com The Alignment Rack offers a convenient, adjustable platform for vehicle alignment, ideal for quick inspections and minor adjustments. The Alignment Pit provides a more permanent, recessed workspace allowing technicians to access the underside of vehicles easily for thorough alignment procedures. Both options enhance precision and efficiency, but the choice depends on space availability and specific workshop needs.
Table of Comparison
| Feature | Alignment Rack | Alignment Pit |
|---|---|---|
| Setup Type | Above-ground platform | In-ground service area |
| Installation Cost | Lower initial investment | Higher initial investment |
| Maintenance | Easy access and maintenance | Difficult and costly maintenance |
| Vehicle Access | Drive-on, no pit required | Vehicle must be positioned over the pit |
| Space Requirement | Requires less floor depth | Needs significant floor excavation |
| Safety | Lower risk due to no open pit | Higher risk due to open pit area |
| Suitability | Best for standard alignment tasks | Ideal for heavy-duty or specialized alignments |
Introduction to Car Wheel Alignment
Car wheel alignment ensures wheels are set to manufacturer specifications for optimal handling and tire wear. Alignment racks provide a flat, elevated platform with advanced sensors for precise adjustments in a controlled environment. Alignment pits offer a recessed space allowing technicians to work underneath vehicles, favored in high-volume garages for quick access but sometimes less precise than racks due to surface variations.
What is an Alignment Rack?
An alignment rack is a specialized platform used in automotive service centers to position vehicles accurately for wheel alignment procedures, ensuring precise measurements and adjustments. It typically features integrated sensors and adjustable components to facilitate the alignment of wheels without the need to lower the vehicle into a pit. Compared to an alignment pit, the alignment rack offers improved accessibility, portability, and ease of installation within workshop spaces.
What is an Alignment Pit?
An alignment pit is a recessed area in the floor of an automotive workshop designed to allow technicians to easily access the underside of vehicles for precise suspension and wheel alignment adjustments. Unlike an alignment rack, which lifts the vehicle off the ground, the pit provides ground-level access without raising the vehicle, enhancing safety and workflow efficiency. This setup is especially beneficial for aligning large or heavy vehicles where lifting may be impractical or unsafe.
Key Differences: Alignment Rack vs Alignment Pit
Alignment racks provide a raised platform enabling technicians to perform vehicle wheel alignment at a convenient working height, ensuring accessibility and ergonomic comfort. Alignment pits are recessed areas built into the floor, allowing technicians to stand beneath the vehicle for alignment tasks, optimizing space in smaller workshops. Key differences include installation complexity, with pits requiring significant construction, while racks offer portability and easier installation.
Space Requirements for Installation
Alignment racks typically require more vertical space due to their raised platforms and overhead rigging, making them suitable for facilities with high ceilings. Alignment pits are embedded into the floor, minimizing vertical space but demanding substantial excavation and floor reinforcement during installation. Choosing between an alignment rack and pit depends on available ceiling height and floor structure constraints, impacting overall space planning and cost.
Efficiency and Workflow Comparison
Alignment racks streamline vehicle servicing by providing elevated platforms that enhance technician access and reduce time spent on undercarriage inspections. Alignment pits allow mechanics to work beneath vehicles without lifting them, conserving floor space but potentially slowing workflow due to limited accessibility. Comparing efficiency, alignment racks generally offer faster operations and improved ergonomics, promoting higher throughput in busy automotive shops.
Safety Considerations for Racks and Pits
Alignment racks offer superior safety by elevating vehicles, reducing the risk of accidental falls and facilitating easier access for technicians. Alignment pits provide ergonomic advantages by allowing technicians to work underneath vehicles without bending, but they require strict safety measures such as protective barriers and proper drainage to prevent slips and falls. Both systems demand regular maintenance and adherence to safety protocols to minimize workplace hazards effectively.
Cost Analysis: Alignment Rack vs Pit
Alignment racks typically involve lower initial installation costs compared to alignment pits, as they require less structural modification to the garage floor. Maintenance and operational expenses for racks are generally lower due to easier access and reduced need for specialized equipment. However, alignment pits often provide enhanced ergonomics and faster inspection turnaround, potentially offsetting higher upfront investment through increased productivity.
Suitability for Different Workshop Types
Alignment racks are highly suitable for modern automotive workshops that require quick vehicle access and efficient workflow, offering portability and ease of use for routine alignments. Alignment pits, integrated into workshop floors, are ideal for larger service centers needing stable, permanent setups with comprehensive under-vehicle access for detailed inspections and repairs. Choosing between an alignment rack and an alignment pit depends on workshop space availability, service volume, and the depth of maintenance tasks performed.
Which Alignment System is Best for Your Shop?
Alignment racks offer a versatile solution with easy access and mobility, ideal for shops requiring frequent vehicle movement and flexible workspace arrangements. Alignment pits provide a permanent, space-saving option with enhanced safety and ergonomic benefits, perfect for shops with limited floor space and a focus on technician comfort. Choosing the best system depends on your shop's layout, workflow efficiency, and long-term maintenance needs.

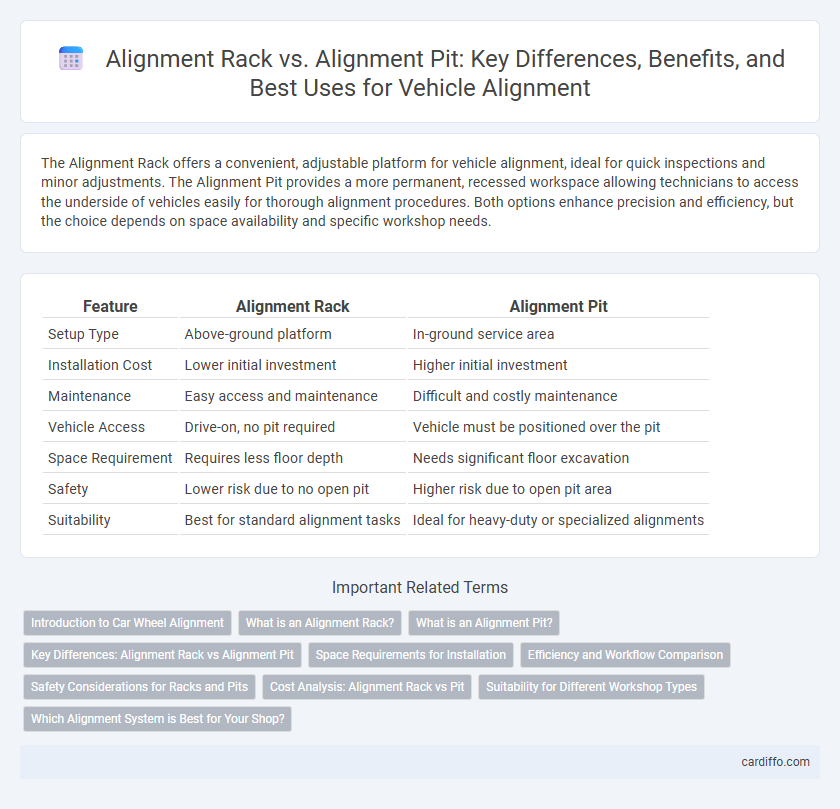

Alignment Rack vs Alignment Pit Infographic
