cardiffo.com Onboard Diagnostics I (OBD-I) provides early vehicle monitoring through basic emission control systems, offering limited diagnostic capabilities. In contrast, Onboard Diagnostics II (OBD-II) delivers comprehensive real-time data and standardized trouble codes for enhanced fault detection and emission control across various vehicle systems. OBD-II is essential for modern vehicles, improving service pet accuracy and efficiency in identifying and resolving issues.
Table of Comparison
| Feature | Onboard Diagnostics I (OBD I) | Onboard Diagnostics II (OBD II) |
|---|---|---|
| Introduction Year | 1980s | 1996 |
| Standardization | Manufacturer-specific protocols | Universal protocols (SAE J1979, ISO 15765) |
| Diagnostic Connector | Various connectors, not standardized | Standard 16-pin J1962 connector |
| Data Access | Limited parameters | Comprehensive vehicle data and trouble codes |
| Trouble Codes | Manufacturer-specific codes | Standardized Diagnostic Trouble Codes (DTCs) |
| Emissions Monitoring | Basic emissions data | Enhanced emissions control and monitoring |
| Real-time Data | Limited or no real-time data | Supports real-time sensor data and freeze frame |
| Scope | Mostly engine systems | Engine, transmission, ABS, airbags, and more |
| Service and Repair | Basic diagnostics, limited repair info | Advanced diagnostics, repair guidance, and emissions readiness |
Introduction to Onboard Diagnostics Systems
Onboard Diagnostics I (OBD-I) represents the initial generation of vehicle monitoring systems introduced in the 1980s, primarily designed to detect emission control malfunctions through basic diagnostic codes. Onboard Diagnostics II (OBD-II), standardized in 1996, provides advanced real-time data access, standardized trouble codes, and comprehensive monitoring of engine performance, emissions, and other critical systems. The transition from OBD-I to OBD-II marked a significant improvement in vehicle diagnostics, facilitating easier troubleshooting and regulatory compliance for modern automobiles.
The Evolution from OBD I to OBD II
Onboard Diagnostics I (OBD I) marked the initial step in vehicle emissions monitoring by providing basic fault codes and limited data access, primarily tailored to individual manufacturers. The evolution to Onboard Diagnostics II (OBD II) introduced a standardized system with comprehensive diagnostic trouble codes (DTCs) and enhanced real-time data monitoring, improving compatibility across all makes and models post-1996. OBD II's advanced capabilities enable more accurate emissions control, better engine performance analysis, and simplified troubleshooting for technicians.
Key Differences Between OBD I and OBD II
Onboard Diagnostics I (OBD I) systems provide limited, manufacturer-specific diagnostic information primarily through simple error codes, whereas Onboard Diagnostics II (OBD II) standards offer universal protocols and comprehensive data for emissions control and engine performance monitoring. OBD II includes standardized trouble codes (DTCs) accessible via a 16-pin connector and supports real-time sensor data, enhancing fault detection and vehicle maintenance accuracy. The evolution from OBD I to OBD II ensures improved regulatory compliance, easier diagnostics, and greater compatibility across all vehicle makes and models.
Diagnostic Capabilities: OBD I vs OBD II
Onboard Diagnostics I (OBD I) offers basic diagnostic capabilities, primarily limited to monitoring engine functions and triggering warning lights for specific issues. In contrast, Onboard Diagnostics II (OBD II) provides enhanced diagnostic capabilities with standardized trouble codes, real-time data access, and broader system coverage, including emissions control, transmission, and fuel systems. OBD II's comprehensive data and advanced sensors enable more accurate fault detection and improved vehicle maintenance.
Emission Control and Compliance
Onboard Diagnostics I (OBD-I) and Onboard Diagnostics II (OBD-II) differ significantly in emission control capabilities and regulatory compliance. OBD-I, introduced in the early 1980s, provides basic monitoring of engine components mainly for emission-related diagnostics but lacks standardized protocols across manufacturers. OBD-II, mandated since 1996, offers comprehensive real-time data, standardized trouble codes, and enhanced emission control monitoring, ensuring stricter compliance with Environmental Protection Agency (EPA) and California Air Resources Board (CARB) regulations.
Vehicle Coverage and Standardization
Onboard Diagnostics I (OBD-I) offers limited vehicle coverage, primarily supporting early 1980s models with manufacturer-specific protocols, resulting in inconsistent data standardization. Onboard Diagnostics II (OBD-II) greatly enhances vehicle coverage by mandating universal standards across all 1996 and newer vehicles, including all makes and models in the United States. The OBD-II system provides standardized diagnostic trouble codes (DTCs) and uniform data communication, ensuring comprehensive and consistent vehicle monitoring and servicing.
Data Access: Codes and Diagnostics
Onboard Diagnostics I (OBD-I) provides limited data access through manufacturer-specific codes and basic diagnostic information, often requiring specialized tools for code reading. Onboard Diagnostics II (OBD-II) offers standardized Diagnostic Trouble Codes (DTCs) and comprehensive real-time data, enabling efficient identification and troubleshooting of vehicle issues. OBD-II supports a universal interface and enhanced protocols, facilitating more accurate diagnostics and broader compatibility across vehicle makes and models.
Benefits of Upgrading to OBD II
Upgrading to Onboard Diagnostics II (OBD II) offers enhanced vehicle monitoring with real-time data, improved emission control, and standardized diagnostic trouble codes across all manufacturers. OBD II systems provide faster, more accurate fault detection that reduces repair times and lowers maintenance costs. This upgrade ensures compliance with stringent environmental regulations, contributing to better fuel efficiency and reduced emissions.
Common Issues and Troubleshooting
Onboard Diagnostics I (OBD-I) systems primarily detect engine-related faults with limited standardization, making troubleshooting more vehicle-specific and challenging due to proprietary codes and connectors. Onboard Diagnostics II (OBD-II) offers standardized diagnostic trouble codes (DTCs) and universal connectors across all vehicles manufactured after 1996, facilitating easier identification of common issues such as oxygen sensor failures, catalytic converter problems, and misfires. Technicians rely on OBD-II scanners to quickly retrieve codes, monitor sensor data, and perform real-time diagnostics, significantly improving the efficiency and accuracy of troubleshooting compared to the earlier OBD-I systems.
Future Trends in Vehicle Diagnostics
Onboard Diagnostics II (OBD-II) represents a significant advancement over OBD-I, offering enhanced real-time data access and standardized diagnostic trouble codes that improve vehicle emissions control and maintenance accuracy. Future trends in vehicle diagnostics emphasize integration with advanced telematics, artificial intelligence for predictive maintenance, and increased connectivity through Internet of Things (IoT) platforms, enabling more proactive and precise fault detection. These innovations aim to transform vehicle diagnostics into a seamless, data-driven service, improving vehicle reliability and reducing repair costs over time.

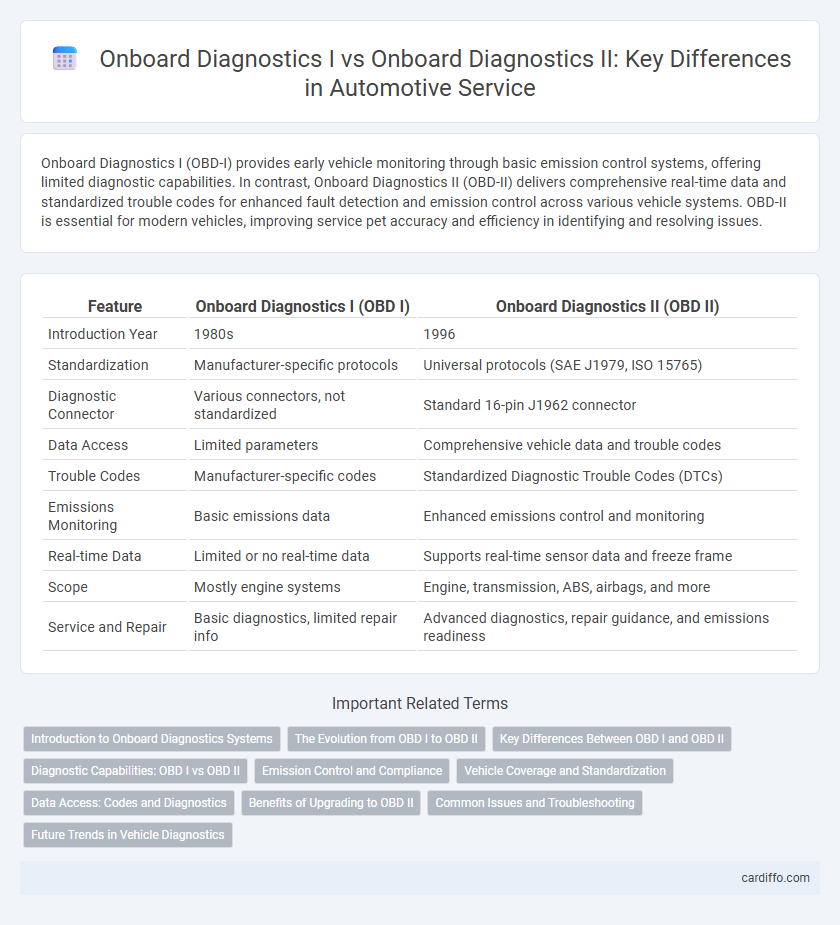

Onboard Diagnostics I vs Onboard Diagnostics II Infographic
